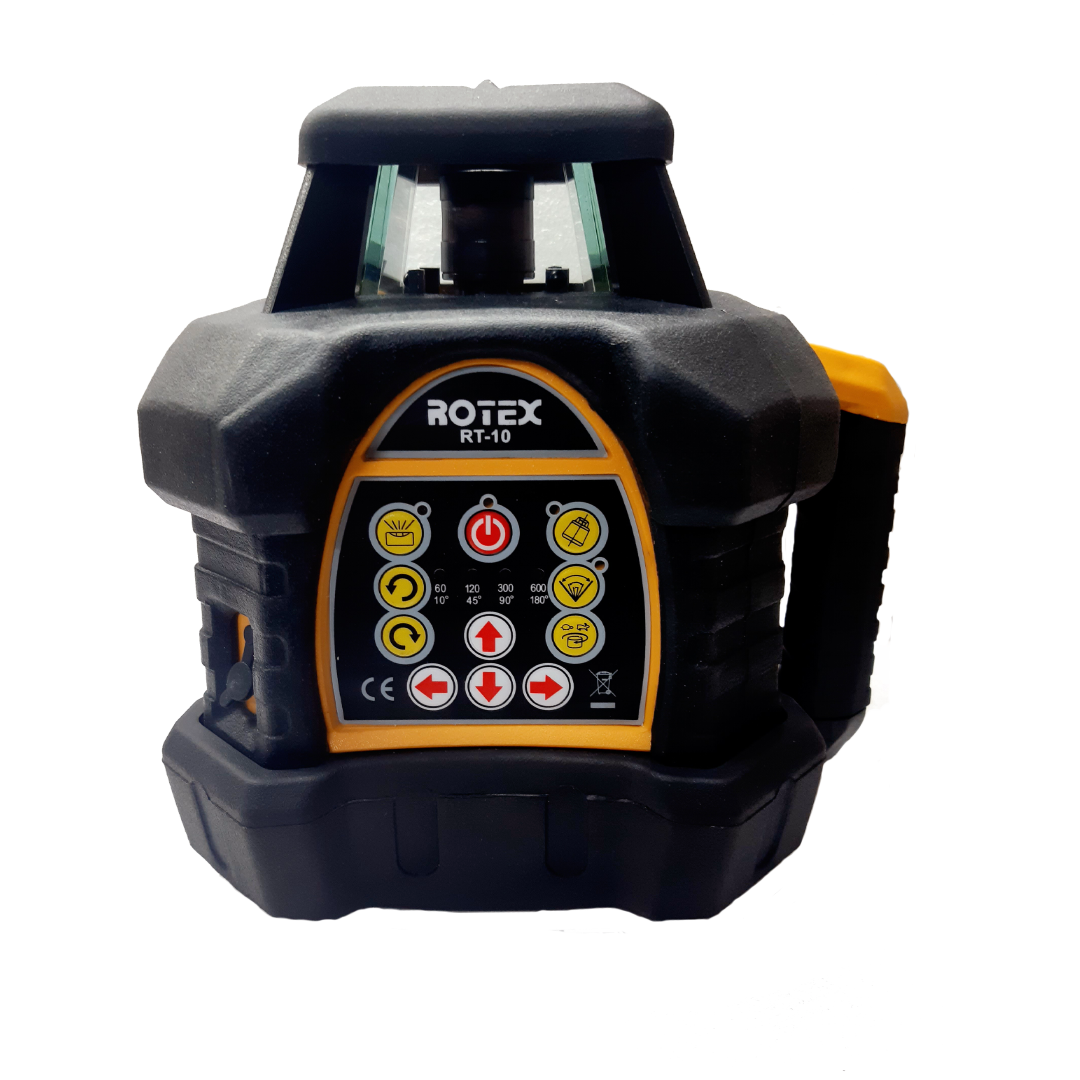

ROTEX ( Rt-10 )

Rotex Laser Land Leveler Transmitter rt-10

Accuracy: +/- 2.25mm over 30 Meters (+/-15 arc seconds)

Auto (self) leveling range: +/-5 degree

(Instrument will auto level on a surface within 5 degrees of true level)

Measuring range: 600 meters diameter (using the supplied laser detector)

Rotation speed: 0, 100, 300, 600 rpm

Dual Grade range in both X & Y axis: +/-8.75% (1 in 11.4)

Laser Output: 635nm class II visible red laser diode

Remote Control range: 20m by IR

Power supply: both rechargeable & alkaline battery packs (4.8V & 6V)

Continuous operating: 25-30hrs

Working Temperature: -20 to +50 degree C

Waterproof protection: IP55

Instrument Dimensions: 220(L) x 175(W) x 225H (mm)

Instrument weight: 3.1kg (with batteries)

Robust & foam lined, carry case: 460 x 350 x 255(H) mm

Kit gross weight: 7.15kg
